Recipe 6 — Reference Lines: Trigger Threshold and Event Marker

Reference lines can mark static values, event positions, or moving cursors. This recipe combines horizontal threshold lines with vertical event markers, including an updated marker that moves in loop() by calling updateVerticalReferenceLine().

A synthetic single-supply pulse crosses a trigger threshold, then rings down toward mid-rail. Horizontal reference lines mark ground, mid-rail, and the trigger level; a vertical marker moves to the trigger time for each frame.

See Reference Lines for managing reference lines and bands via the Analysis panel.

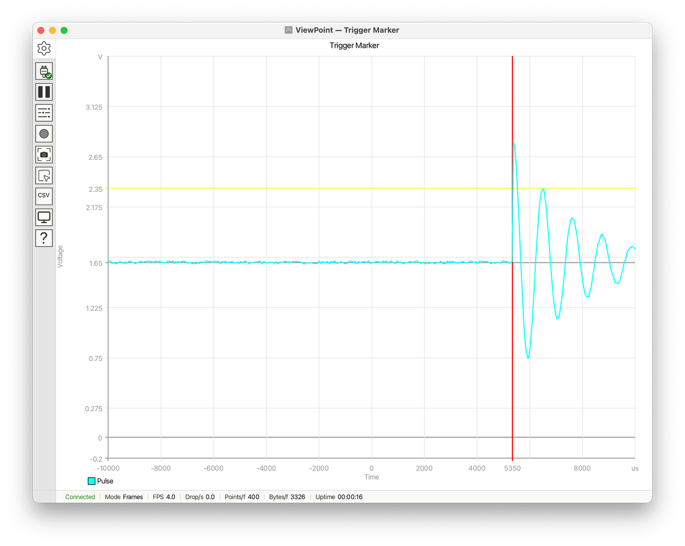

Recipe 6 — trigger threshold and moving event marker

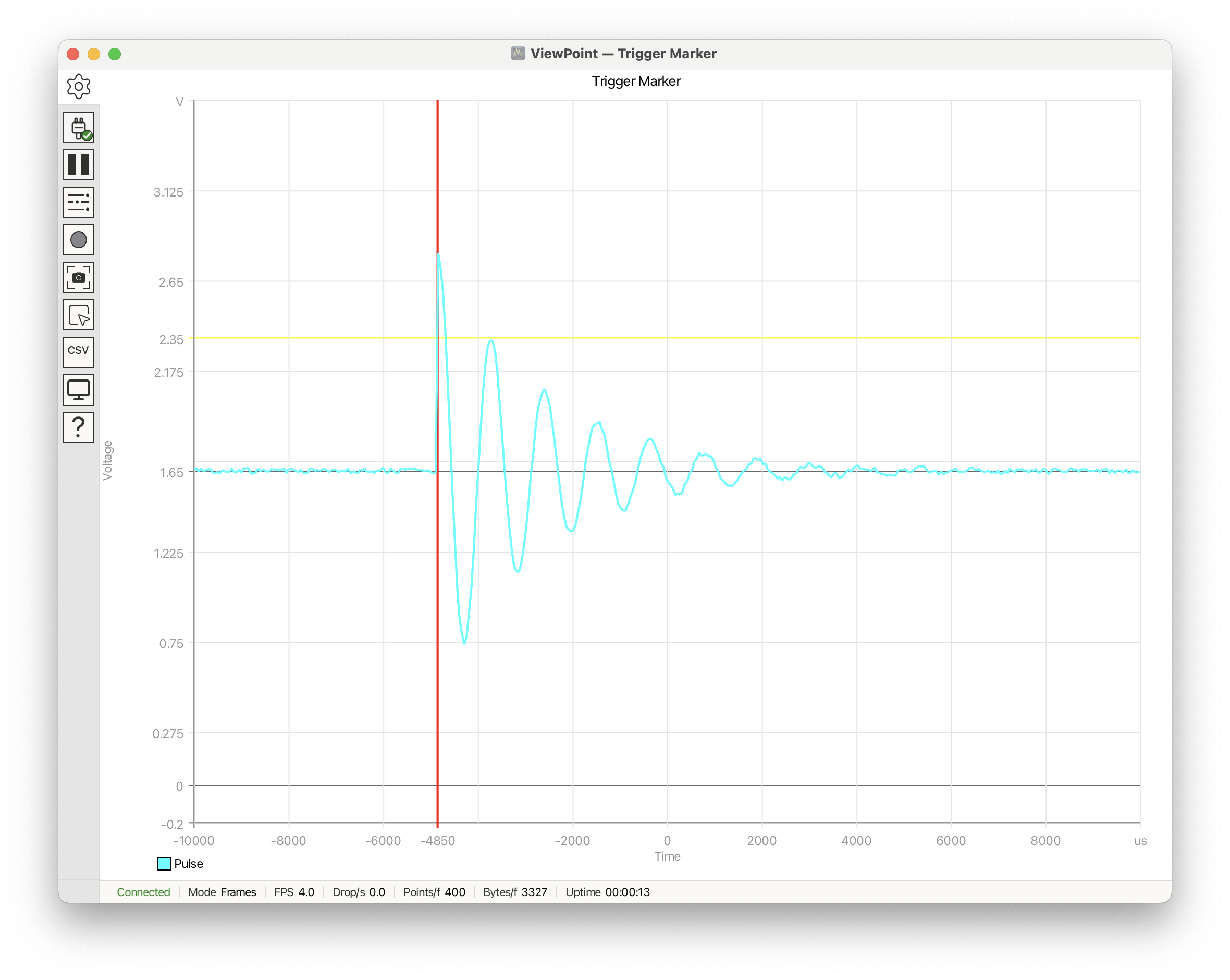

Recipe 6 (alternate frame) — the marker tracks the event as it moves

Declarations and helpers

#include <ViewPoint.h>
#include <math.h>
using namespace viewpoint;

const float VREF = 3.3f;
const float TRIGGER_LEVEL = 2.35f;
const uint32_t SAMPLE_RATE = 20000;   // 20 kSPS
const int DISPLAY_SAMPLES = 400;
const uint32_t FRAME_DELAY_MS = 250;

int triggerMarker = -1;
int triggerIndex = 120;
int triggerStep = 17;
unsigned long lastFrameMs = 0;

float sampleAt(int i, int trigger) {
    float baseline = VREF / 2.0f;
    float noise = random(-15, 16) * 0.001f;
    float t = i - trigger;

    if (t < 0) {
        return baseline + noise;
    }

    float pulse = 1.15f * expf(-t / 45.0f) * cosf(t * 0.28f);
    return baseline + pulse + noise;
}

Configuration

void setup() {
    view.begin(frames, DISPLAY_SAMPLES);
    view.setDelay(0);
    view.setTitle("Trigger Marker");

    float time_span_us = DISPLAY_SAMPLES * (1.0f / SAMPLE_RATE) * 1e6f;
    float half_span = time_span_us / 2.0f;

    view.setPlotTitle("Triggered Pulse");
    view.setHorizontalRange(-half_span, half_span, 10);
    view.setVerticalRange(-0.2, 3.6, 8);
    view.setAxisLabels("Time", "Voltage");
    view.setUnits("us", "V");

    view.addHorizontalReferenceLine(0.0f, colors::DimGray);
    view.addHorizontalReferenceLine(VREF / 2.0f, colors::DimGray);
    view.addHorizontalReferenceLine(TRIGGER_LEVEL, colors::Yellow, 1.5f);

    float triggerTimeUs = (triggerIndex - DISPLAY_SAMPLES / 2) *
                          (1.0f / SAMPLE_RATE) * 1e6f;
    triggerMarker = view.addVerticalReferenceLine(triggerTimeUs,
                                                  colors::Red,
                                                  2.0f);
    view.trace("Pulse").setColor(colors::Cyan);
}

Loop

void loop() {
    unsigned long now = millis();
    if (now - lastFrameMs < FRAME_DELAY_MS) return;
    lastFrameMs = now;

    float triggerTimeUs = (triggerIndex - DISPLAY_SAMPLES / 2) *
                          (1.0f / SAMPLE_RATE) * 1e6f;
    view.updateVerticalReferenceLine(triggerMarker, triggerTimeUs);

    for (int i = 0; i < DISPLAY_SAMPLES; i++) {
        view.addData("Pulse", sampleAt(i, triggerIndex));
    }
    view.send();

    triggerIndex += triggerStep;
    if (triggerIndex > DISPLAY_SAMPLES - 80 || triggerIndex < 80) {
        triggerStep = -triggerStep;
        triggerIndex += triggerStep;
    }
}

What's happening

• Horizontal lines identify meaningful voltage levels: ground, mid-rail, and the trigger threshold.
• The vertical marker identifies when the event occurred in the captured frame.
• updateVerticalReferenceLine() keeps the marker tied to the event as the synthetic trigger position moves from frame to frame.

What the functions do

• addHorizontalReferenceLine(value, color, stroke) draws a flat threshold at a y value.
• addVerticalReferenceLine(value, color, stroke) draws an event marker at an x value and returns its reference-line index.
• updateVerticalReferenceLine(index, value) moves an existing marker without creating a new line.
